New Functions & Enhancements of GstarCAD2012

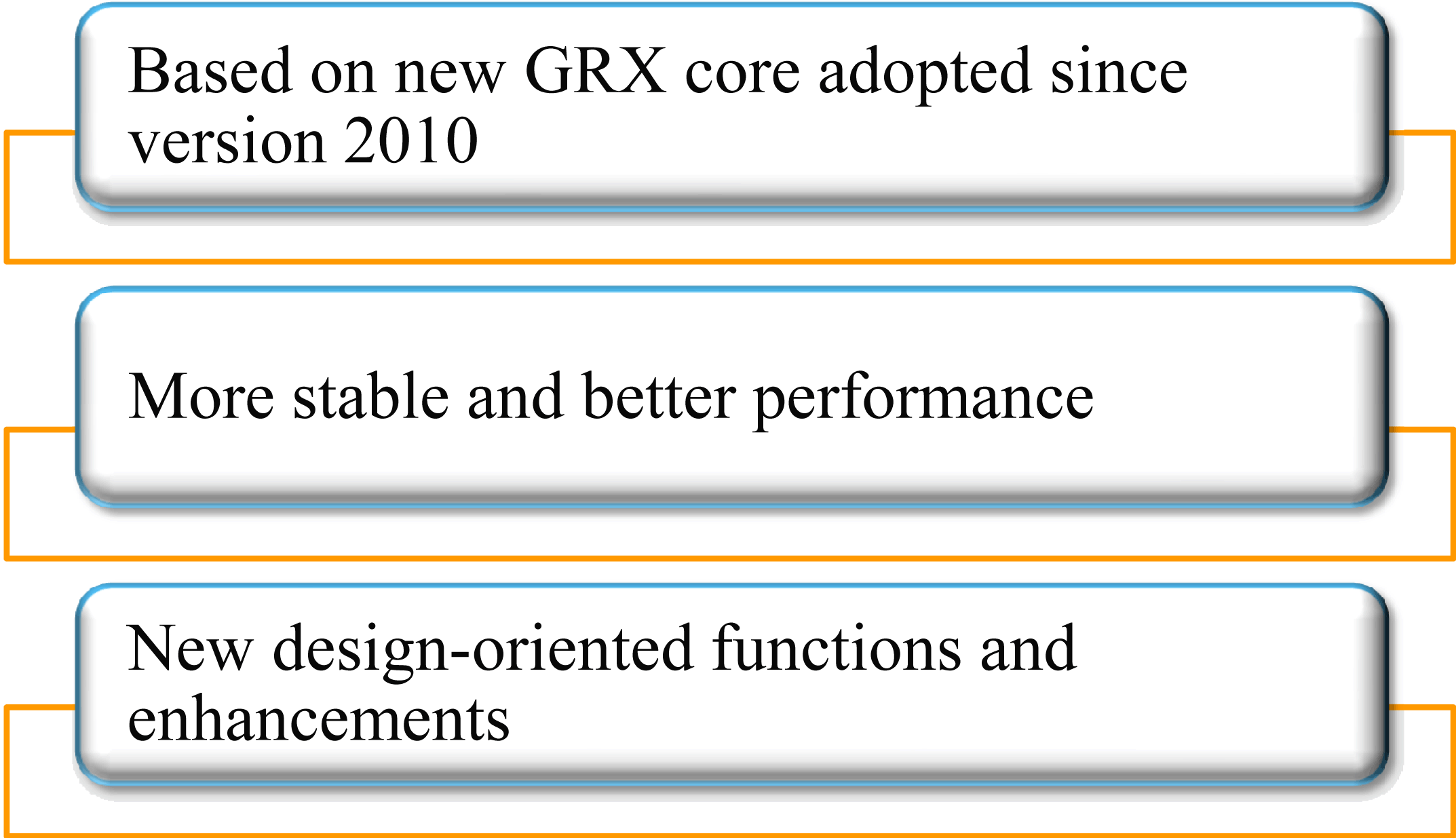

About GstarCAD 2012

New Functions

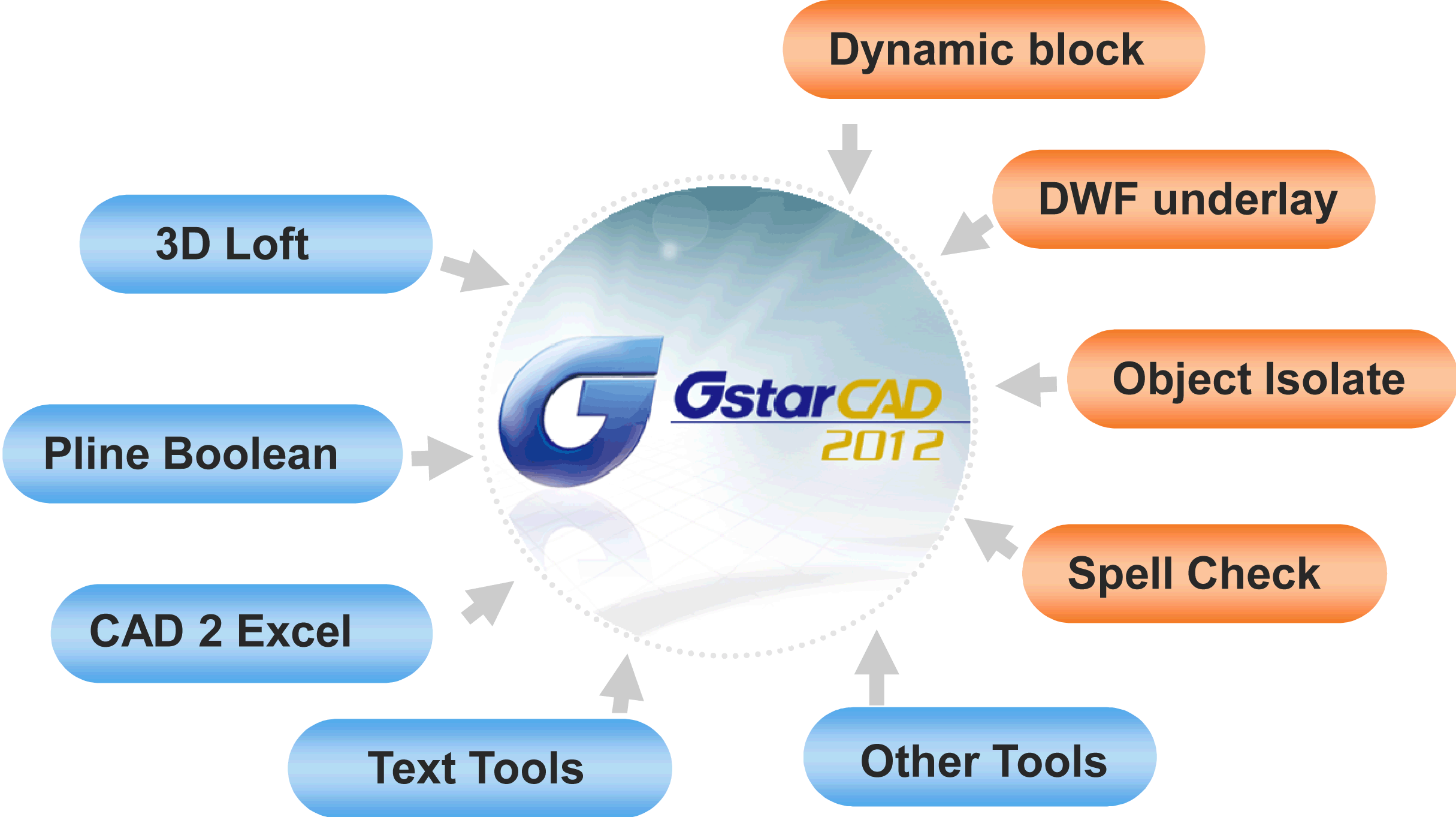

Improve the applicability and usability, more design-oriented and easy to use

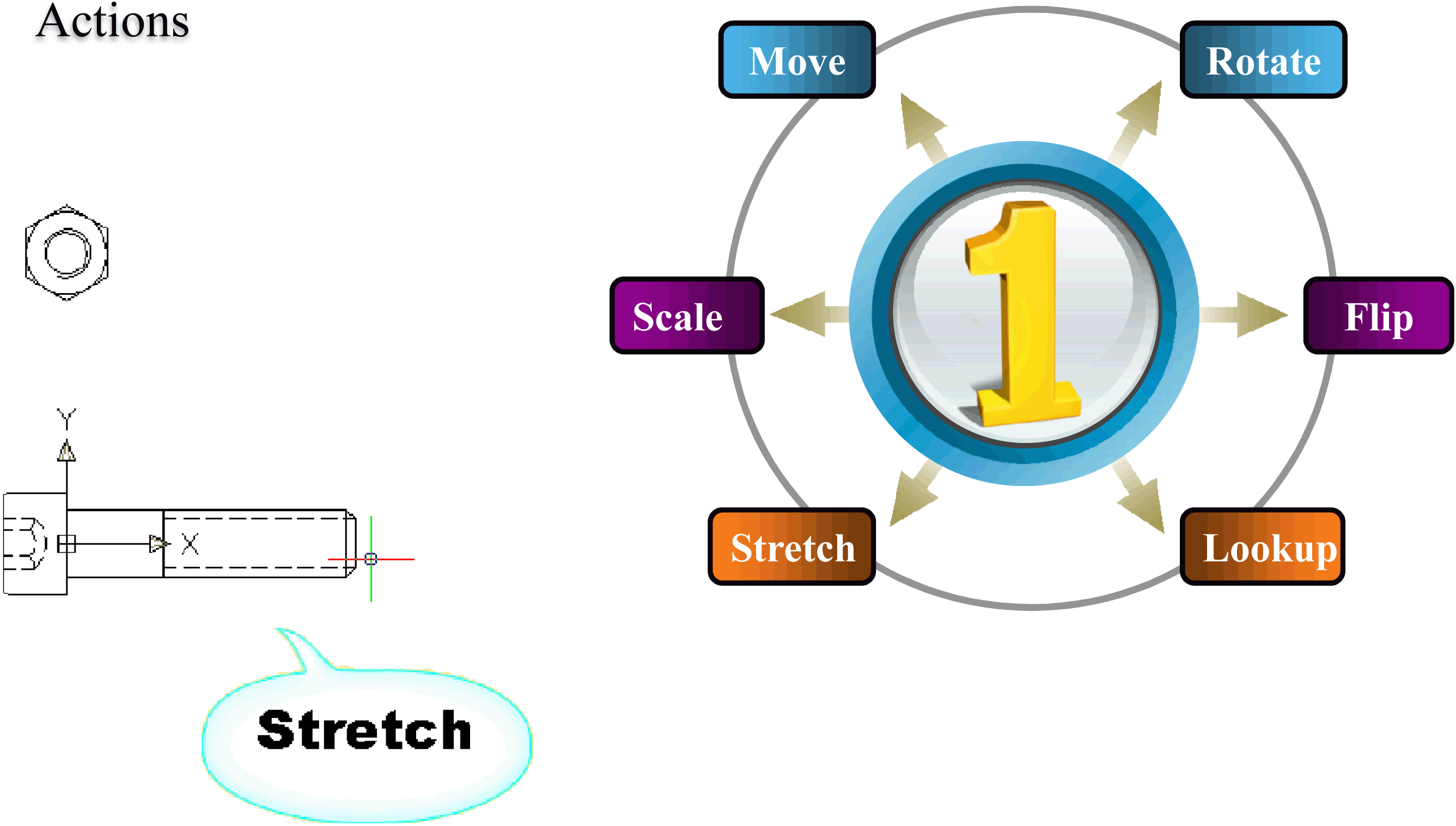

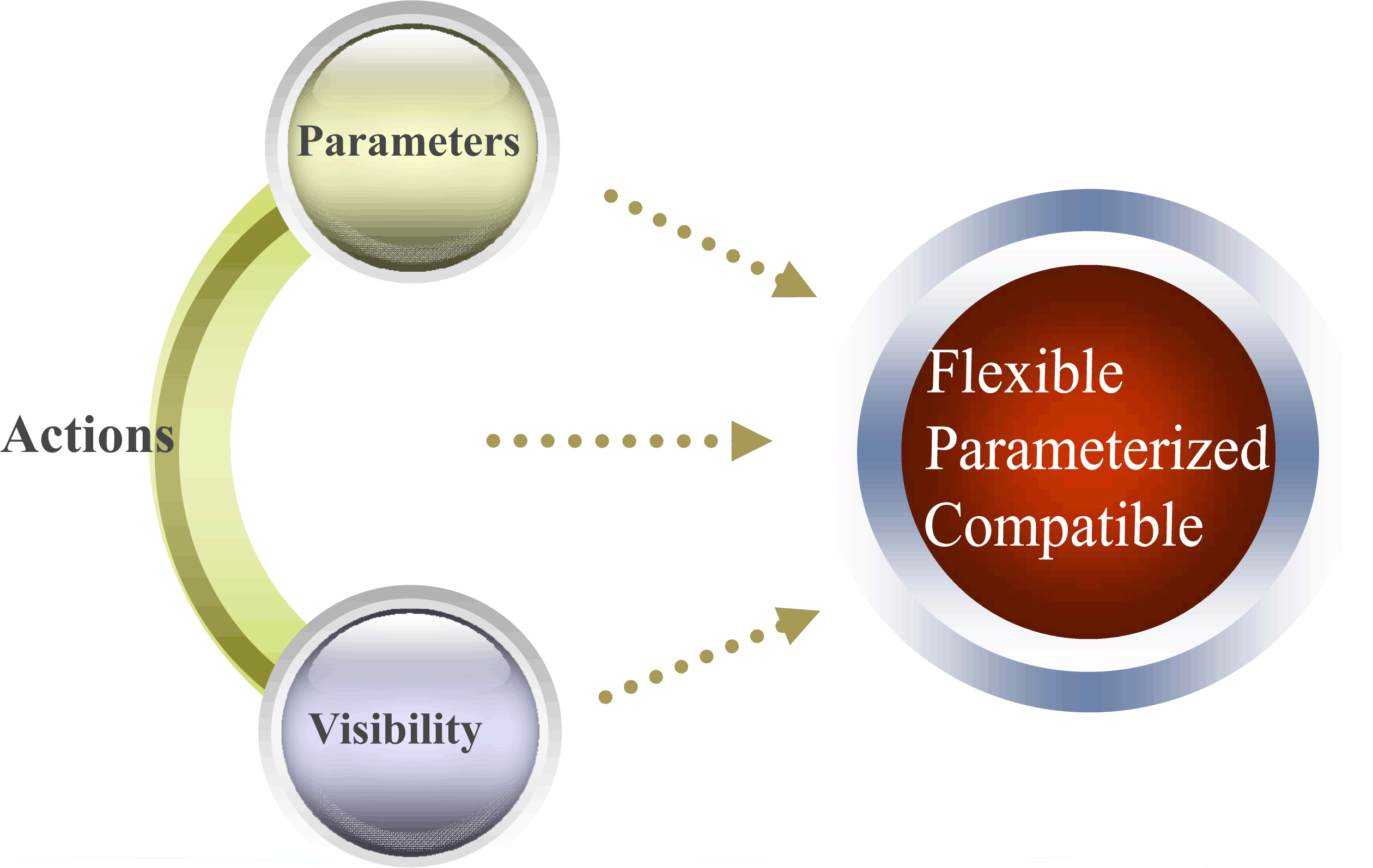

New Functions - Dynamic Block (Bedit)

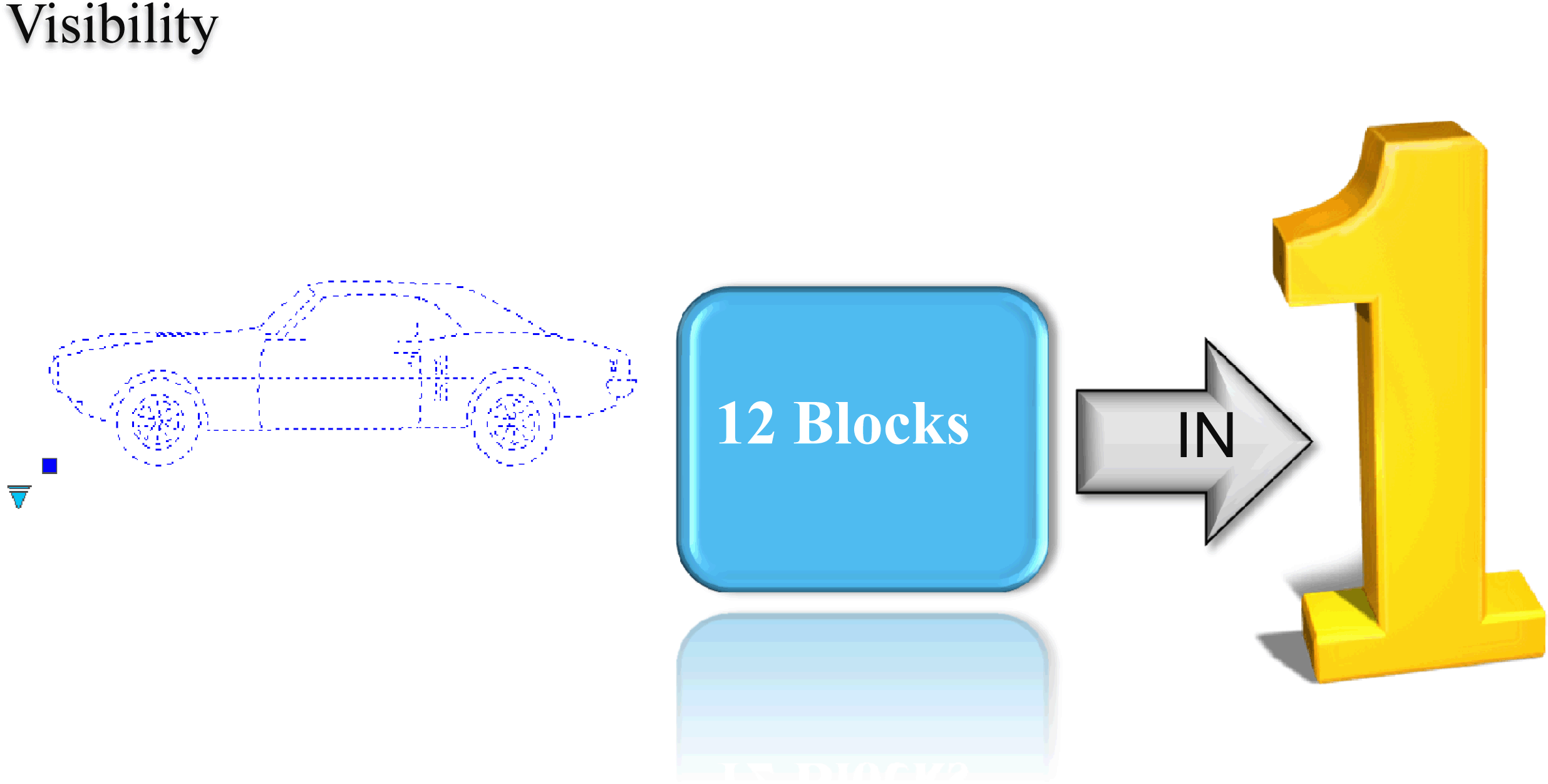

Improve the applicability and usability, more design-oriented and easy to use

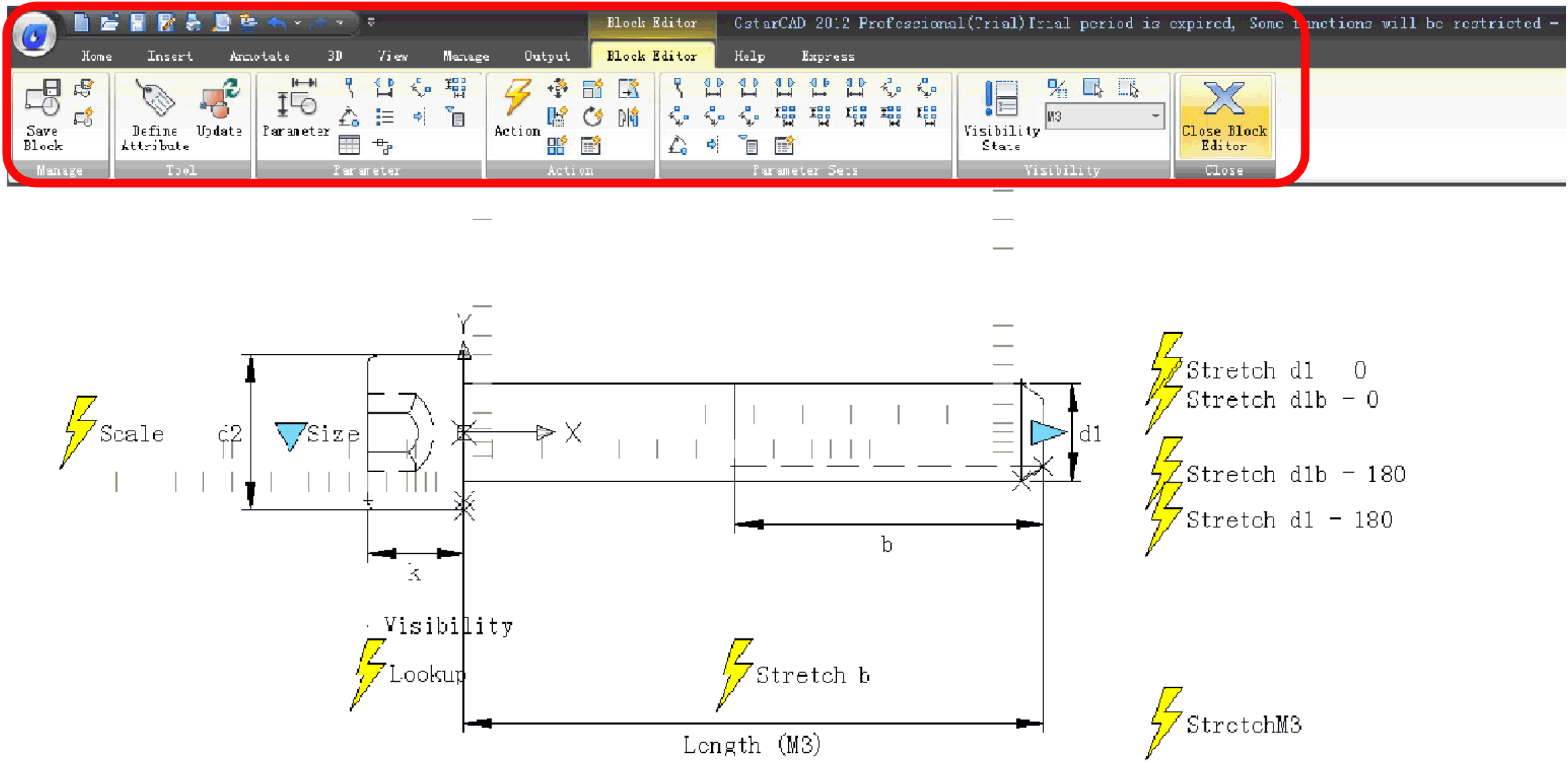

Menu option of Bedit command

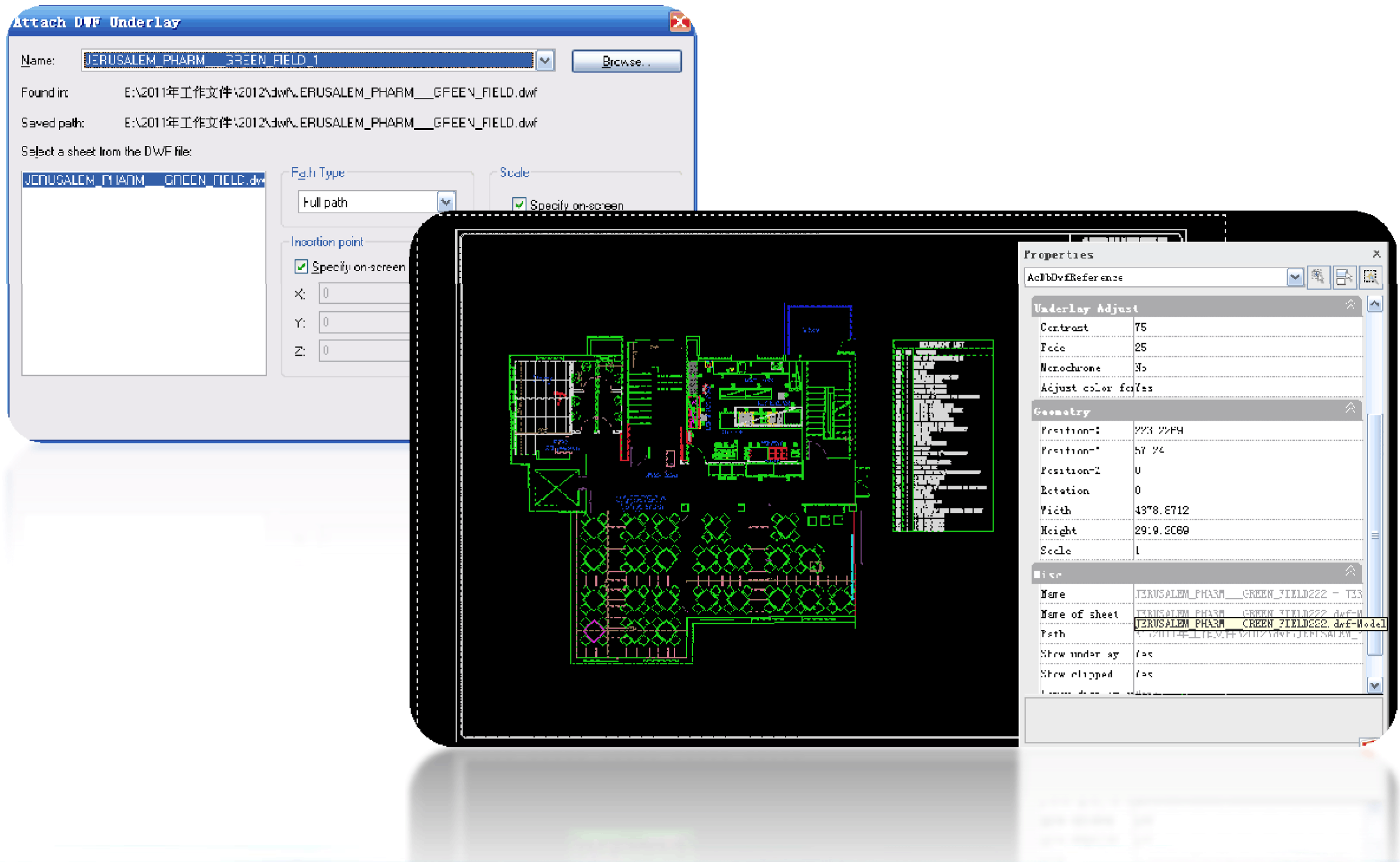

New Functions - DWF Underlay (Dwfattach)

Possible to insert dwf file as underlay

New Functions - Hide/Isolate Object

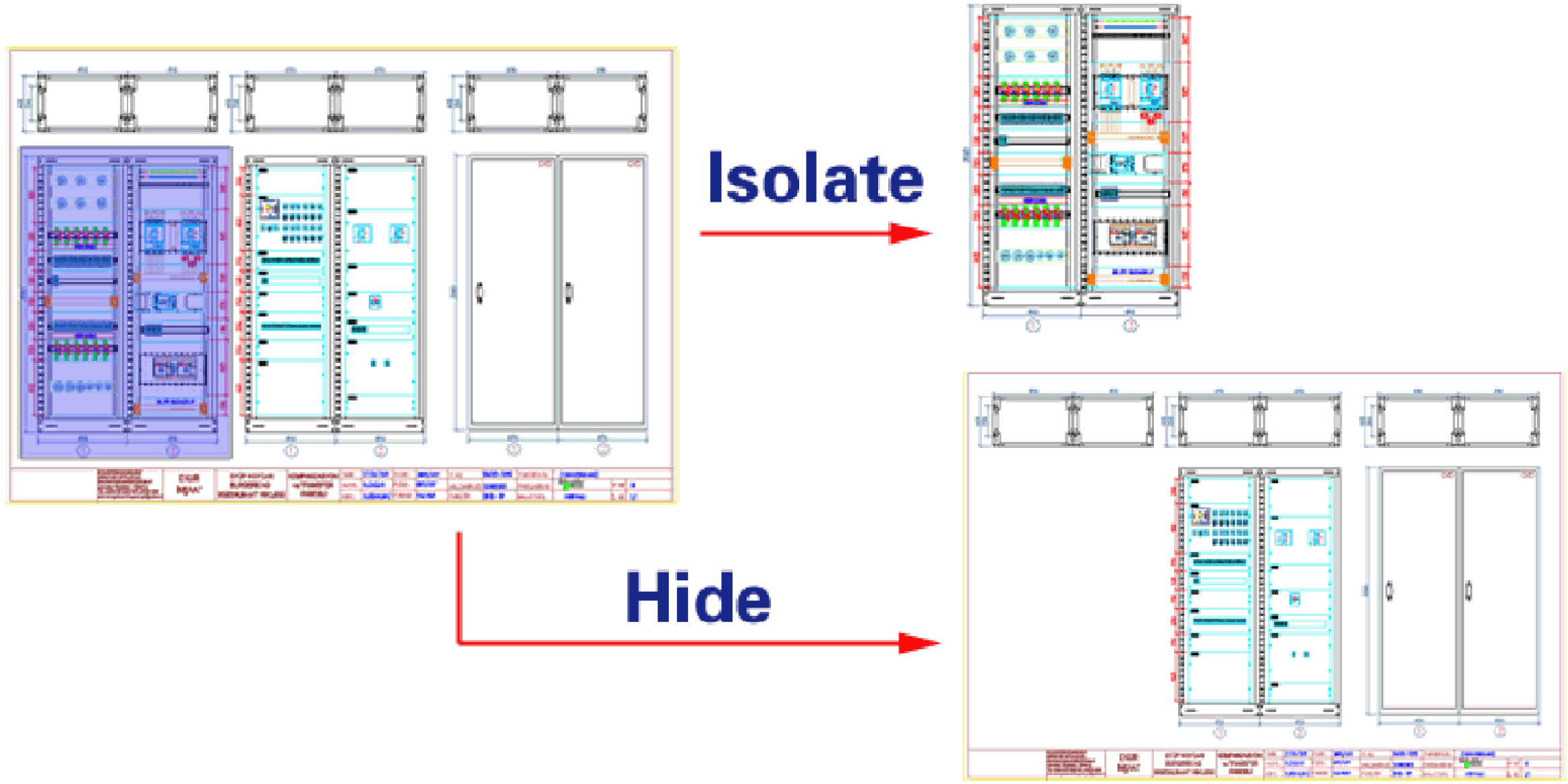

Possible to temporarily hide /isolate selected or non-selected objects.

New Functions - Spelling Check

This function enable to check the spelling of specified text in a drawing with suggestion vocabulary. Supporting 8 languages including English, German etc. Possible to check the text of all object types such as text, text in block, attribute ,etc.
  • Possible to check the text of all object types such as text, text in block, attribute ,etc.
  • Possible to check objects in Model and Layout space separately Possible to check an object or a set of objects
  • Able to define user vocabulary
  • Compatible to AutoCAD vocabulary

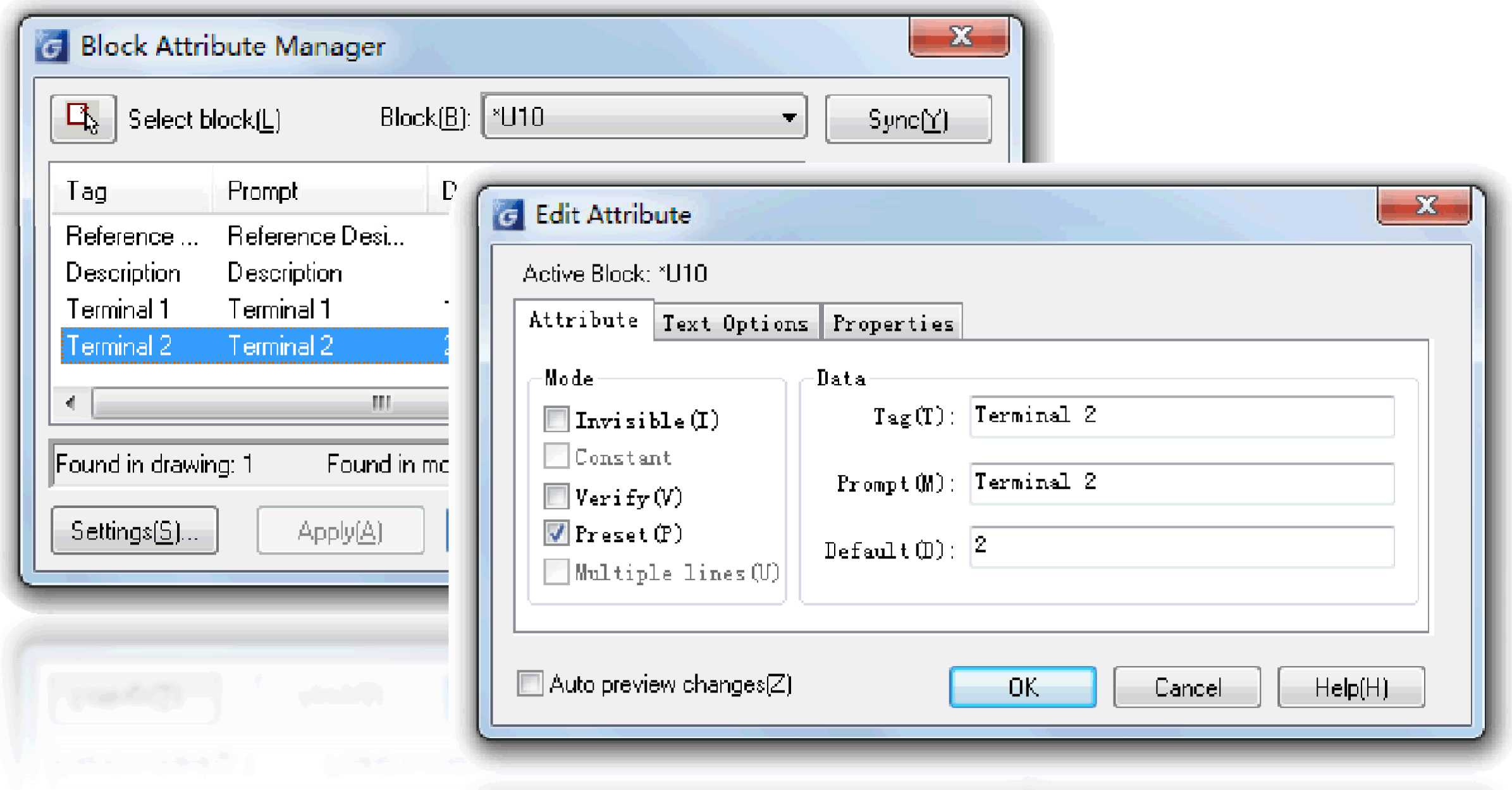

New Functions - Block Attribute Manager (Battman)

It is able to check and edit the attributes of blocks in current drawing and apply the change to related block reference by running "Battman".

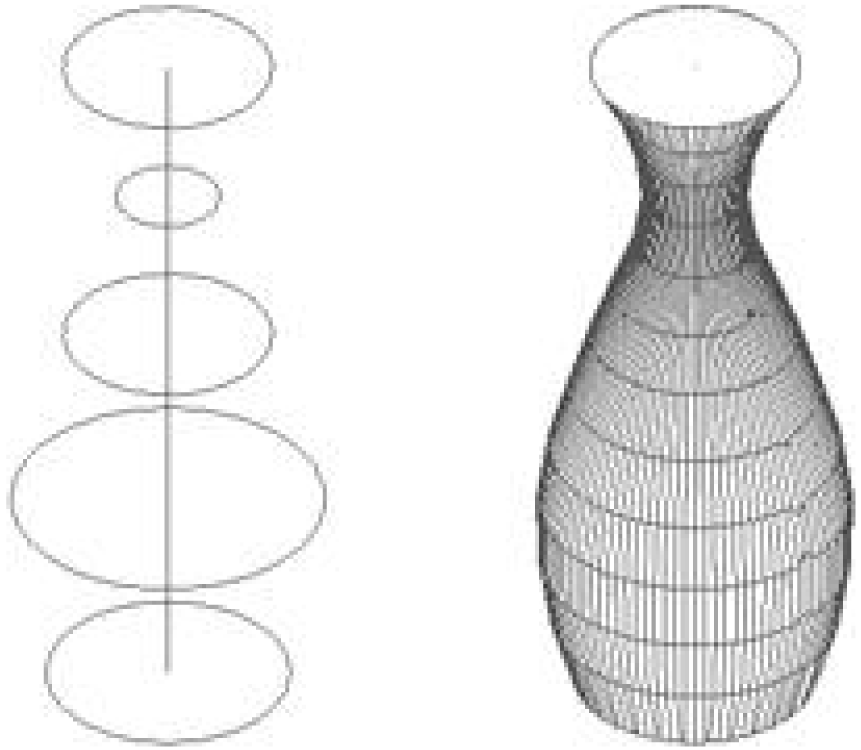

New Functions - 3D Loft (Loft)

It is able to check and edit the attributes of blocks in current drawing and apply the change to related block reference by running "Battman".

  • Type of section curve/object :
    Line, Arc, Elliptic Arc, 2D Ployline, 2D Spline, Circle, Ellipse, Area, point and 3D Surface
  • Type of drive curve :
    Line, Arc, Elliptic Arc, 2D Polyline, 2D Spline, Circle, Ellipse, 3D Polyline.

New Functions - ExpressTools

Unique functions required by GstarCAD users are integrated into version 2012 :
  • Layer Tools
    Able to switch off, freeze or lock non-selected layers..
  • CAD Sheet to Excel
    Direct transformation of table in drawing into Excel table
  • Text Incremental
    Copy text while increasing the selected number or letter in the text pursuant to predefined rule
  • Polyline Boolean
    Able to directly conduct Boolean operation of closed polylines
  • Text on Line
    Place text in selected line and automatically break the line at the position
  • CAD Sheet to Excel

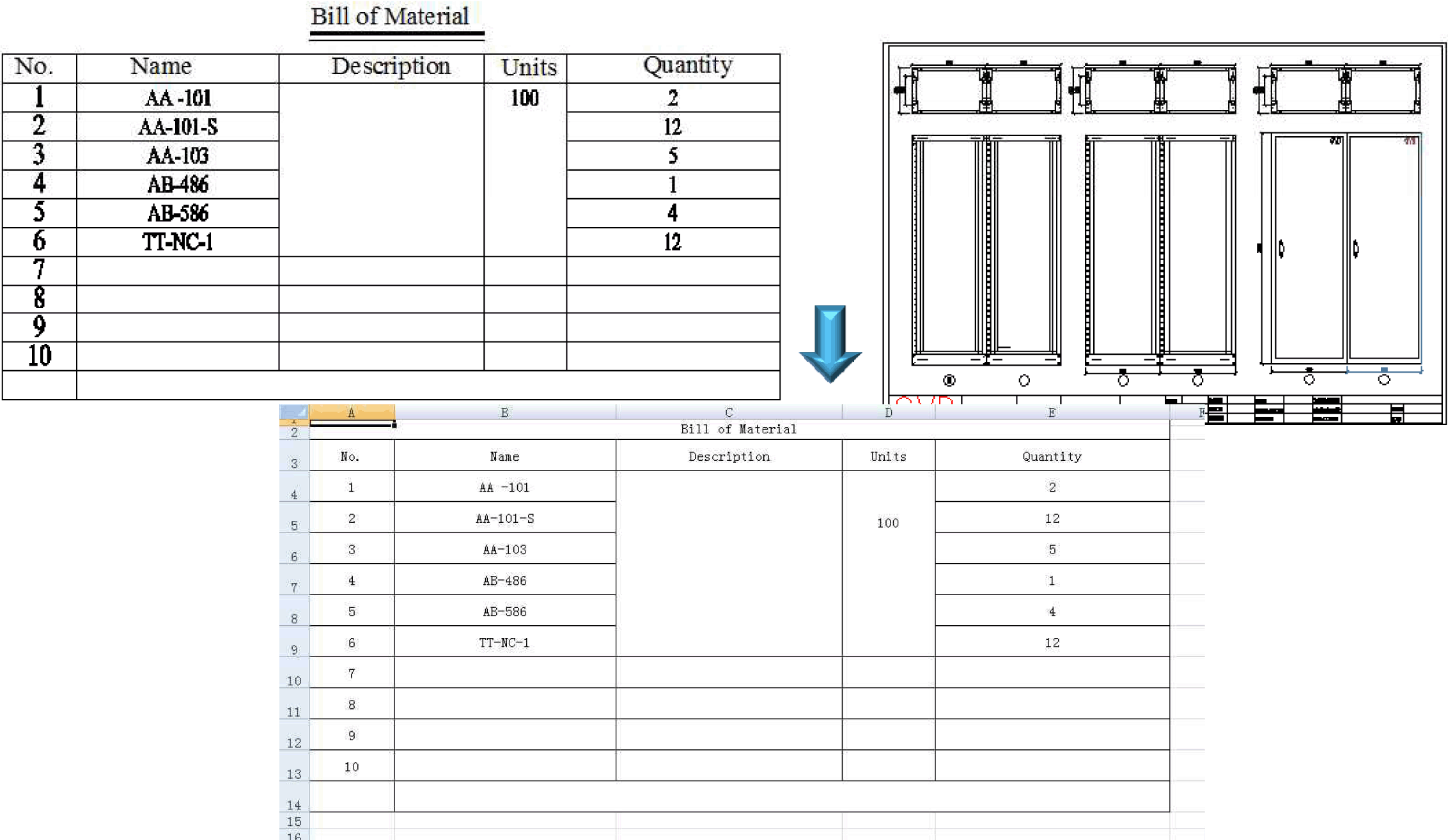

    Direct transformation of table in drawing to Excel table

  • Incremental Copy of Text
    Copy text while increasing the selected number or letter in the text pursuant to predefined rule. Very useful for automatic numbering.

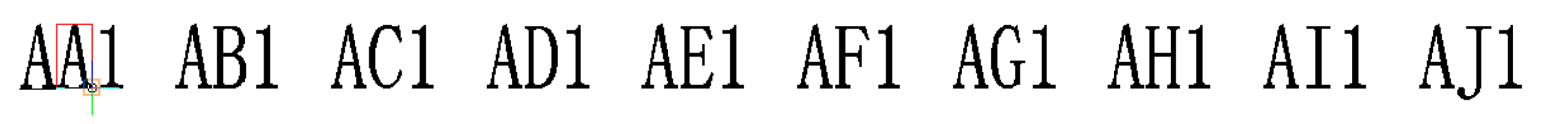

    Copy text and number it as per numeral

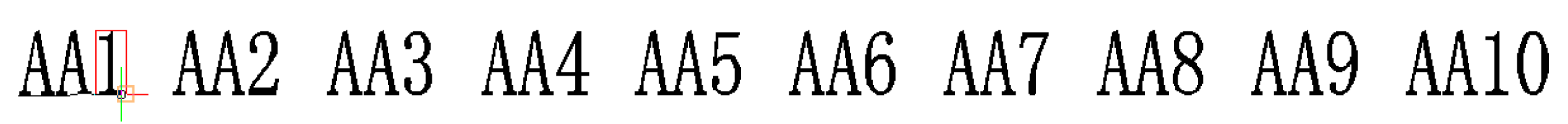

    Copy text and number it as per alphabetic order

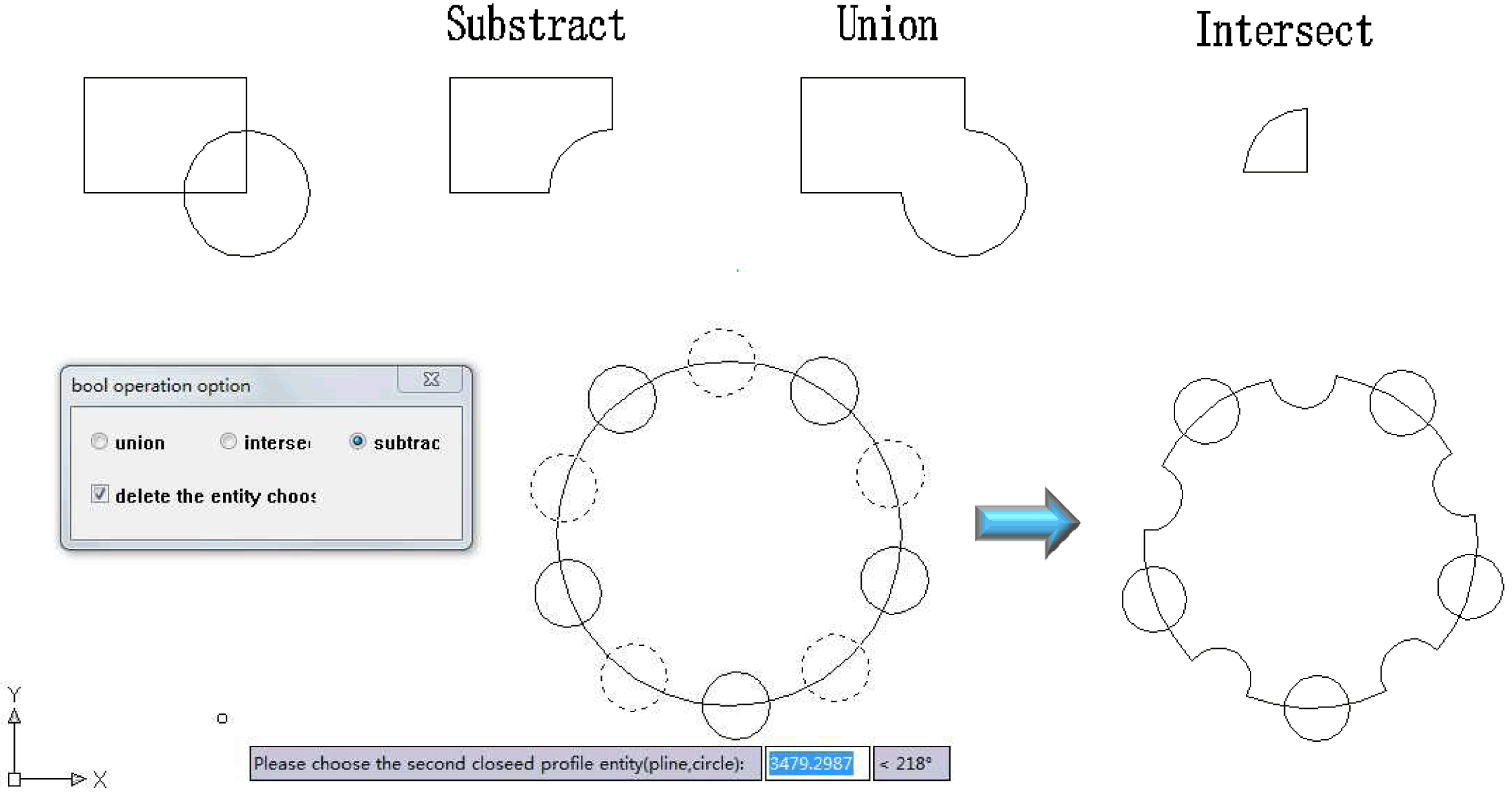

  • Ployline Boolean
    Able to directly conduct Boolean Operation of closed curves

  • Super hatch

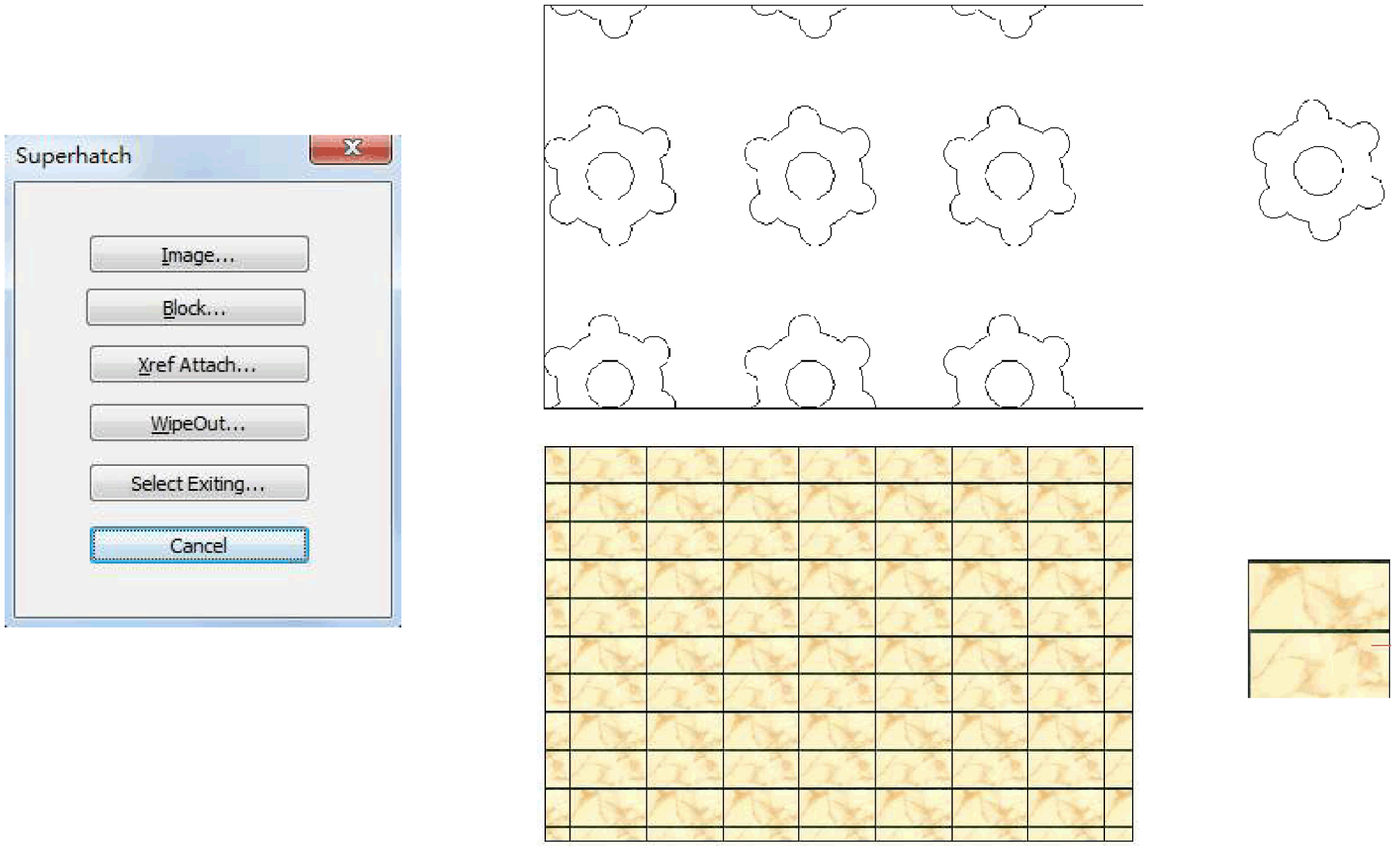

    Super hatch allows to use raster image, block, external reference etc. as hatch pattern.

  • Text on Line
    Insert text in selected line and automatically break the line at the insert position

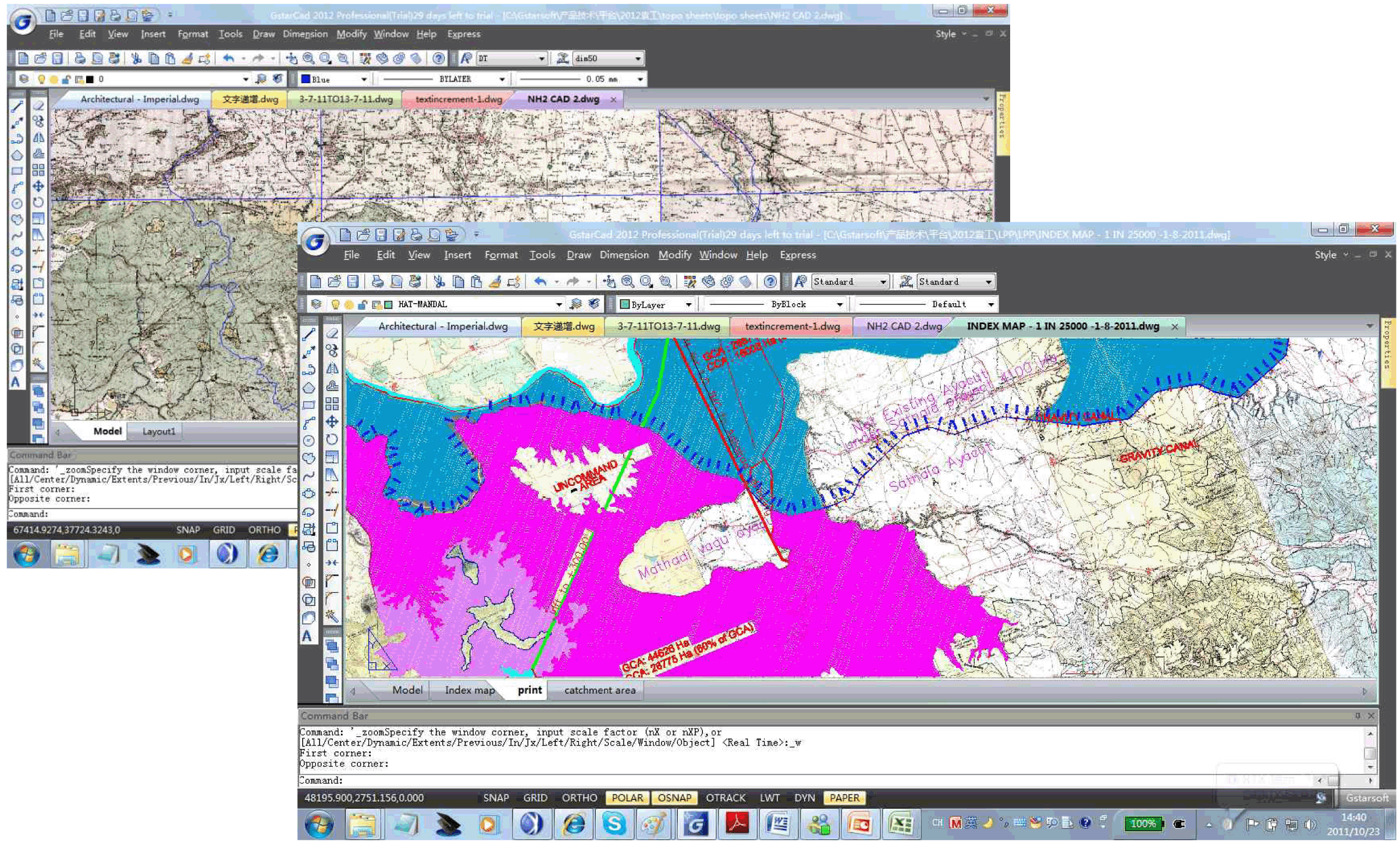

Enhancements - Raster Image

Possible to temporarily hide /isolate selected or non-selected objects.

Enhancements - APIs

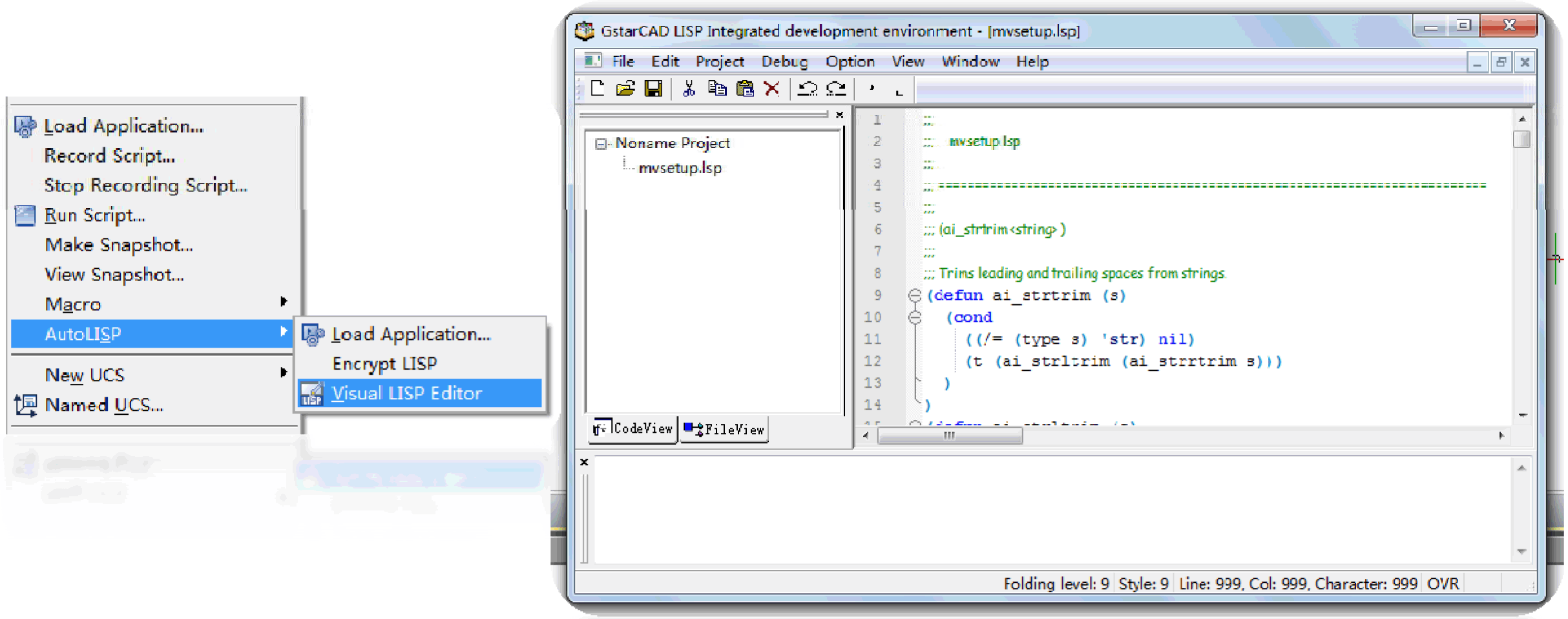

  • The enhancement of APIs in GstarCAD2012 includes : Newly added IDE for Lisp Programming

  • Other improvements of Lisp and VBA
